See-Thru Cellar Doors

Get Customized Version

OUR TAKE

Functionality and Aesthetic Appeal

Glass-top cellar doors that blend into any floor surface while providing safe, easy access. Load-rated for foot traffic, engineered for standard cellar openings, and designed so any metal fabrication shop can build them from our drawings.

Transparent cellar door
Transparent cellar door

Production-Ready Design Files

Every design includes complete manufacturing documentation: PDF dimensional drawings, DXF cutting patterns, 3D models (STEP/IGES), and a bill of materials with hardware sourcing notes. Built so any workshop with a laser or plasma cutter and a welder can produce these doors to spec.

cellar trap door design rendering
cellar trap door design rendering
floor glass door design
floor glass door design

Design files at hand...

door frame exploaded view instructions
door frame exploaded view instructions

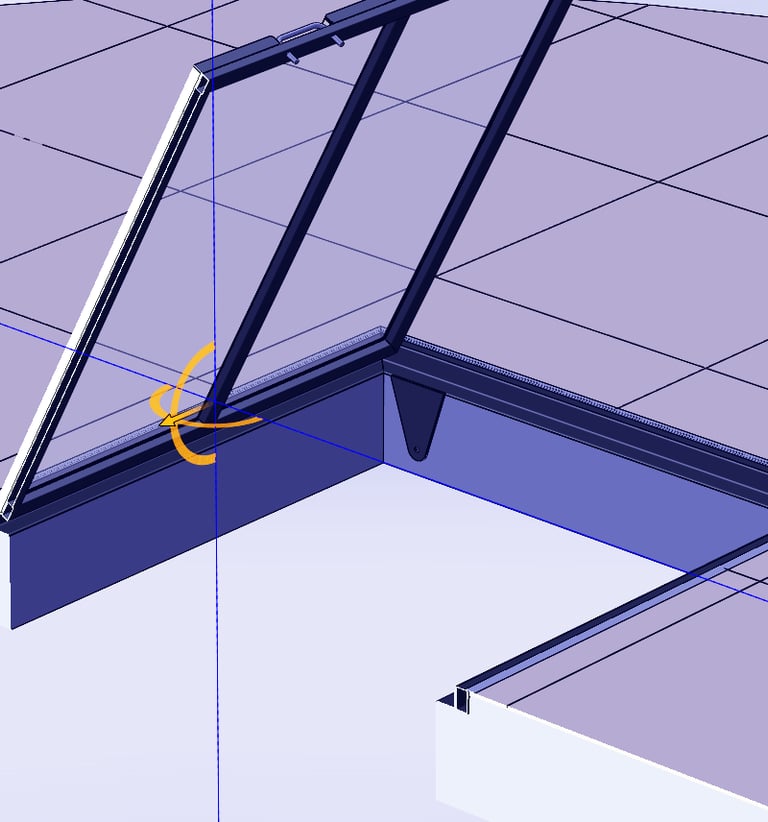

design section-view CAD
design section-view CAD
door frame manufacturing files
door frame manufacturing files

What's Included

  • PDF dimensional drawings (imperial & metric)

  • DXF cutting patterns — ready for laser, plasma, or waterjet

  • 3D models (STEP, IGES, Parasolid)

  • Bill of materials with hardware specifications

  • Assembly sequence guide

Need a custom size? Contact us with your opening dimensions and we'll deliver a tailored drawing package.

These files can also be opened and edited in XYWORKS.PRO — our free browser-based CAD/CAM tool.
